TRU VIEW Extra Tall- Extra Long – 3 Sided Glass / Indoor or Outdoor Electric Fireplace

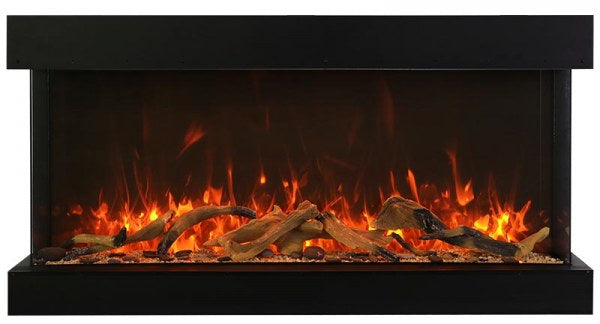

The TRU-VIEW-XT-XL electric fireplace features an Extra Tall viewing area! That is 6” taller than our other Tru-View models. It has a deep media tray and comes standard with an incredible 15-piece log set, ICE media, pebbles, stones, black glass, and vermiculite embers allowing consumers to completely customize the look of their fireplace.

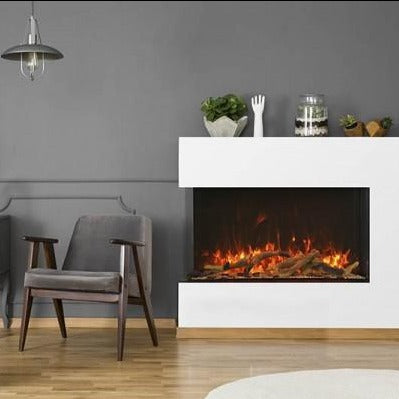

Corner Fireplace: The Tru-View-XT-XL series work beautifully as Corner Electric Fireplace. Also rated as an outdoor electric fireplace.
The TRU-VIEW-XT-XL comes standard with a 15 piece log set, ICE media, pebbles, stones, black glass, and vermiculite embers.
INCLUDED ACCESSORIES

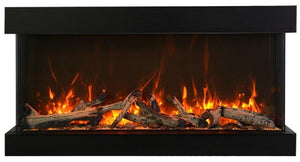

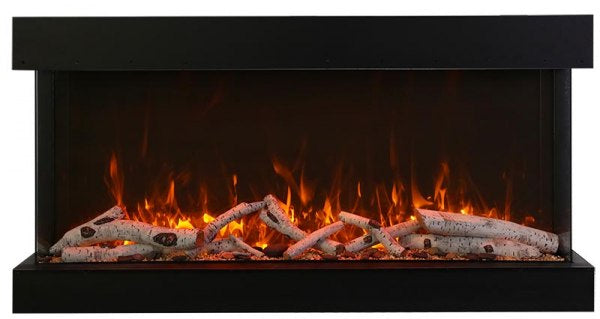

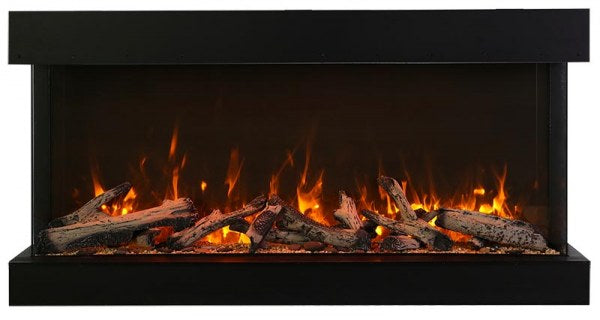

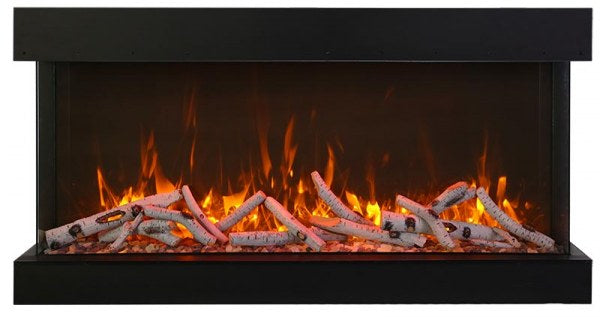

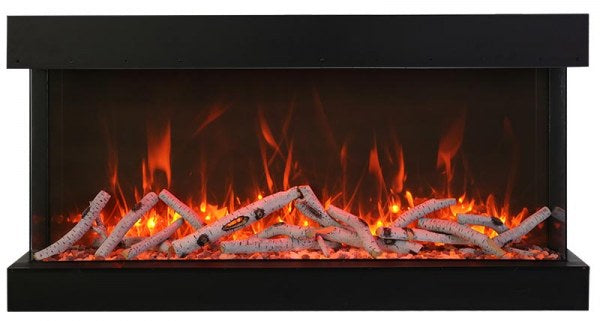

The TRU-VIEW-XT-XL electric fireplaces come with your choice of Driftwood, Birch, or Rustic Log media kits or ICE media kit.
KEY FEATURES
-
- 3 sided built in electric fireplace
- WiFi Compatible to connect and control the fireplace from your smartphone with the use of our app. Available on the Google Play Store and Apple App Store
- Three speed flame motor
- Heat Outdoor 5000 BTU
- No unsightly venting and grills seen. A true clean and vent free look
- Programmable timer & thermostat allows you to decide the temperature of the room. Set your fireplace to turn on before you arrive home or have it automatically turn on when the weather is cold.
- Touch pad for convenient control of the features and temperature display from the fireplace.
- Choose from combinations of yellow, orange and red colored flames
- Approved for indoor or outdoor applications.*
- Choose from 11 colors of canopy and ember bed lighting to illuminate decorative media from below and above
- Two flame pattern styles – standard and more traditional
- New patented thermostatic remote comes included
- all 3 sides of the glass are visible
- Left side visible
- Right visible
- front only for an extra deep (14 1/4″) fireplace
Specs
| 40-TRU-VIEW-XL-XT | |
| Volts | 120 |
| Amps | 12.5 |
| Watts | 1500 max |
| Heater | 1500 watts high 750 watts low |
| No Heater | 19 watts |
| Lamps | LED – 41 watts |
| Rotor Motor | 2 at 5 watts |
| Height, Width, Depth | 33” x 43 1/4” x 13 3/4” |
| Glass View Opening | 22” X 39 5/8” |
| Glass Size | 22” X 39 5/8” |
| Shipping Size | 35 1/4” x 47 1/2” x 15 5/8” |
| Shipping Weight | 125.7 lbs – glass included 109.6 lbs – unit |
| Plug Location | Left Side |
| Cord Length | 76″ |
| Approx. Heating Area | 400 sq. ft. |
Installation
OUTDOOR INSTALLATION INSTRUCTIONS
TRU View XL Drill Modifications Diagram
REPLACEMENT GLASS MEASUREMENTS
